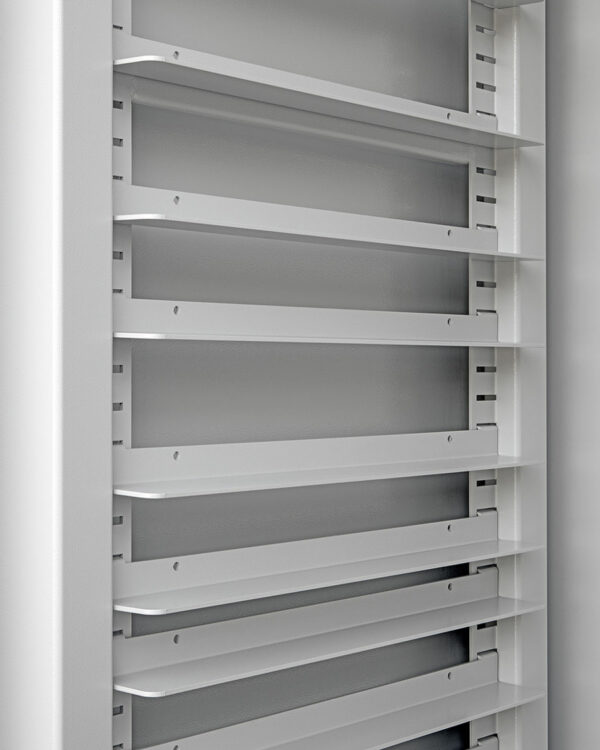

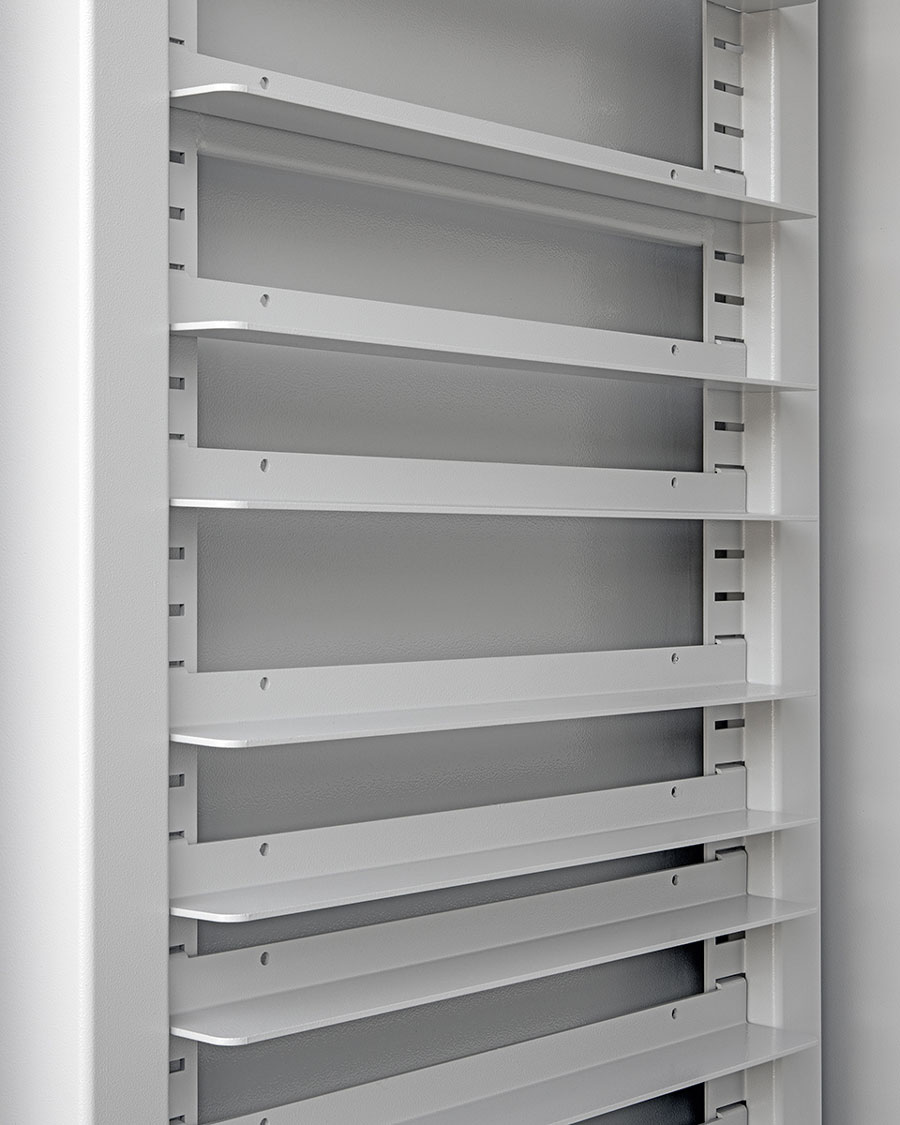

- 19” Rack mounts with slide-in shelves for battery module mounting, ranging from 8-12 modules
- Universal racking system for multiple battery brands such as BYD Flex 5.0, Pylontech US3000C and US5000B
- Indoor or outdoor installation thanks to IP protection rating of IP55
- Fully welded construction, 3mm Aluminium
- Stainless steel bolts and fittings installed throughout
- Powder coated light grey finish (RAL7035)
- Mounting pan powder coated white
- Triple front doors with segregation between battery section, equipment section and air-con section
- Robust 3-point locking system
- Gland plates fitted internally
- Air conditioner fitted with separate regulated cold air ducts to battery and equipment sections
- Refer to Air-Conditioner data sheet for specifications
- Mounting plate can be used for inverters, chargers and all other equipment
- Stainless steel lifting eyes on all four corners on top
- Internal circuit breaker section for individual battery module isolation, with circuit breaker cut-outs in the escutcheon
- Document pocket on inside of door
- Cabinet depth increased to 760mm to suit GenZ and Powerplus batteries
AL12+AC Double Skinning
$9,139.90 Incl GST
Solar Battery and Equipment Cabinet
Australian Registrar Of Designs Certification: No. 202014068
Air-Con Version
Save time on-site and provide the customer with a neat, safe enclosure for their solar system installation.
The cabinets are sized to enable mounting of all inverters and charge controllers in the same panel. This makes the installation much safer, whilst keeping all equipment out of sight and protected from the elements. The cabinets are made of aluminium, making them easy to position and providing a long service life.
A slide-in racking system allows for easy installation of 19” rackmount style battery modules along with cabinet air-conditioner for temperature control of the batteries and equipment in hot environments.
* Price excludes air-con unit.
Available on back-order
Features
Optional Extras
- Double skinning with insulation between layers for full outdoor installation
- 50mm x 8mm tinned copper bus bar assembly
Specifications
| Model | AL12+AC |
|---|---|
| Battery modules | 12 |
| External height to top of eye bolts | 2010mm |
| External height to top of cabinet | 1945mm |
| External cabinet width | 2600mm |
| External width a base of flange | 2700mm |
| External depth | 760mm |
| Internal usable depth | 550mm |
| Mounting Plate height | 1720mm |
| Mounting Plate width | 1120mm |
| Mounting Plinth width | 2700mm |
| Mounting Plinth depth | 585mm |
| Weight | 386kg |
| Material | Aluminium |
| Thickness | 3mm |
| Finish | Powder Coating |
