- 19” Rack mounts with slide-in shelves for battery module mounting, ranging from 5-12 modules
- Universal racking system for multiple battery brands such as BYD Flex 5.0, Pylontech US3000C and US5000B
- Indoor or outdoor installation thanks to IP protection rating and new additional rain hood
- Fully welded construction, 3mm Aluminium
- Stainless steel bolts and fittings installed throughout
- Powder coated light grey finish (RAL7035)
- Mounting pan powder coated white
- Double front doors with segregation between battery section and equipment section
- Robust 3-point locking system • Gland plates fitted internally
- Rain protected vents on either side and on top to facilitate passive and forced ventilation. Covers are removable.
- Mounting plate can be used for inverters, chargers and all other equipment
- Stainless steel lifting eyes on all four corners on top
- Internal circuit breaker section for individual battery module isolation, with circuit breaker cut-outs in the escutcheon
- Document pocket on inside of door
- Dust filters installed on inlet outlet vents

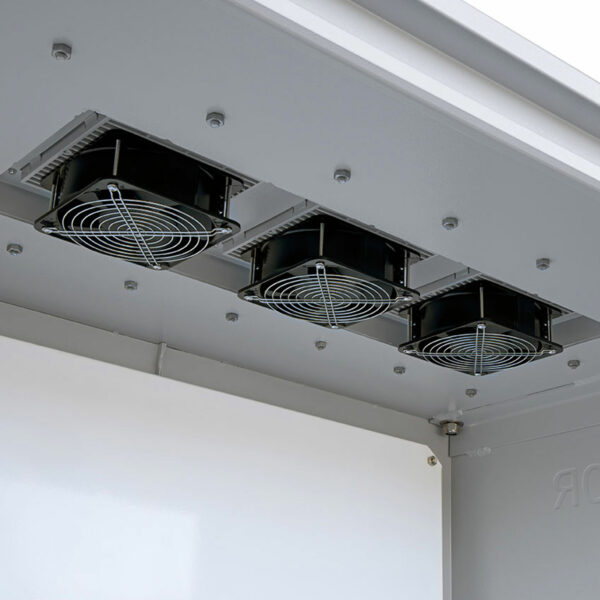

- Ventilation fans installed as standard
- Punched aluminium screens over all openings to prevent unwanted entry by insects
AL12+
$5,027.00 Incl GST

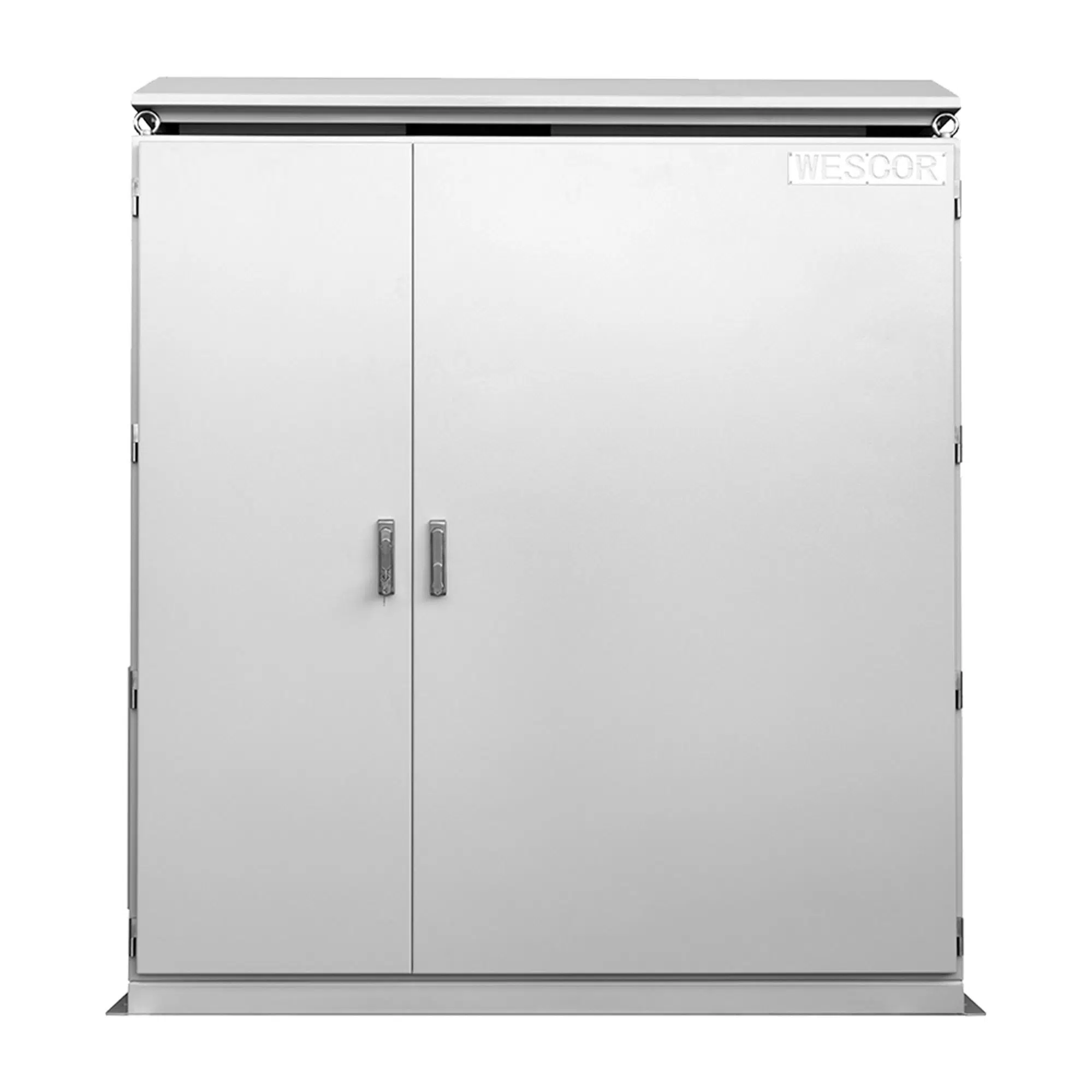

Solar Battery and Equipment Cabinet
Australian Registrar Of Designs Certification: No. 202014068
Equipment cabinets made specifically for the solar industry, to make installations easier, faster and safer.
Save time on-site and provide the customer with a neat, safe enclosure for their solar system installation.
The cabinets are sized to enable mounting of all inverters and charge controllers in the same panel. This makes the installation much safer, whilst keeping all equipment out of sight and protected from the elements. The cabinets are made of aluminium, making them easy to position and providing a long service life.

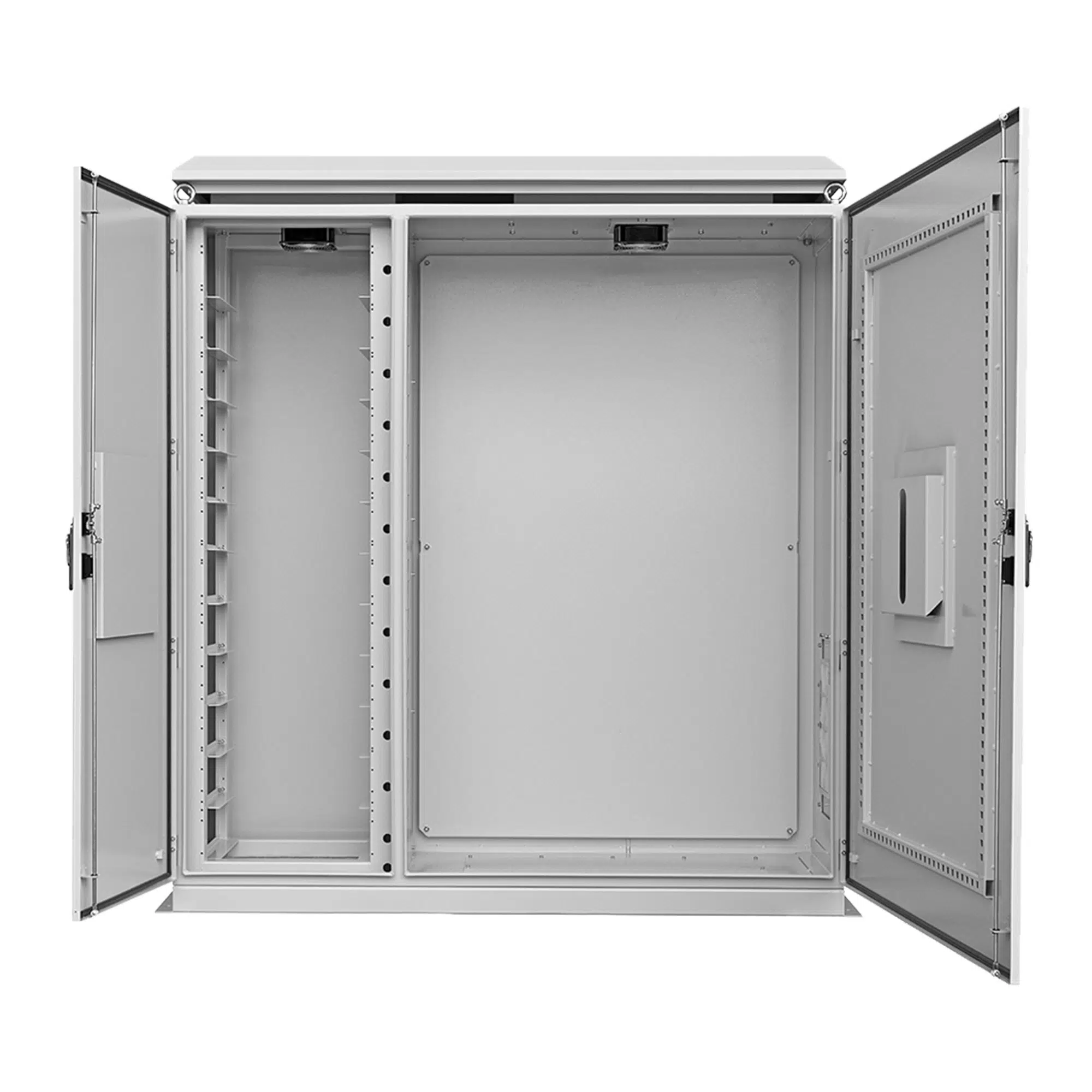

A slide-in racking system allows for easy installation of many different types of 19” rack-mount style battery modules along with rain protected vents on both sides and on top for mechanical air ventilation. Double skinned and airconditioned versions also available on request.
Availability: 1 in stock
Features
Optional Extras
- 50mm x 8mm x 600mm long tinned copper bus bar complete with pre-drilled holes for battery cable connections
- Bus bar insulators and stainless steel bolts
- Small mounting pan for the 2 x bus bars
Specifications
| Model | AL12+ |
|---|---|
| Battery modules | 12 |
| External height without cover | 2036mm |
| External height with cover | 2038mm |
| External cabinet width | 1800mm |
| External width a base of flange | 1900mm |
| External depth | 585mm |
| Internal usable depth | 550mm |
| Mounting Plate height | 1720mm |
| Mounting Plate width | 1120mm |
| Mounting Plinth width | 1900mm |
| Mounting Plinth depth | 585mm |
| Weight | 186kg |
| Bus Bar Mounting Plate dimensions | 650mm (length) x 18mm (height) x 230m (width) for all models |
| Material | Aluminium |
| Thickness | 3mm |
| Finish | Powder Coating |
