Aluminium Battery and Equipment Enclosures
Equipment cabinets made specifically for the solar industry, to make installations easier, faster and safer

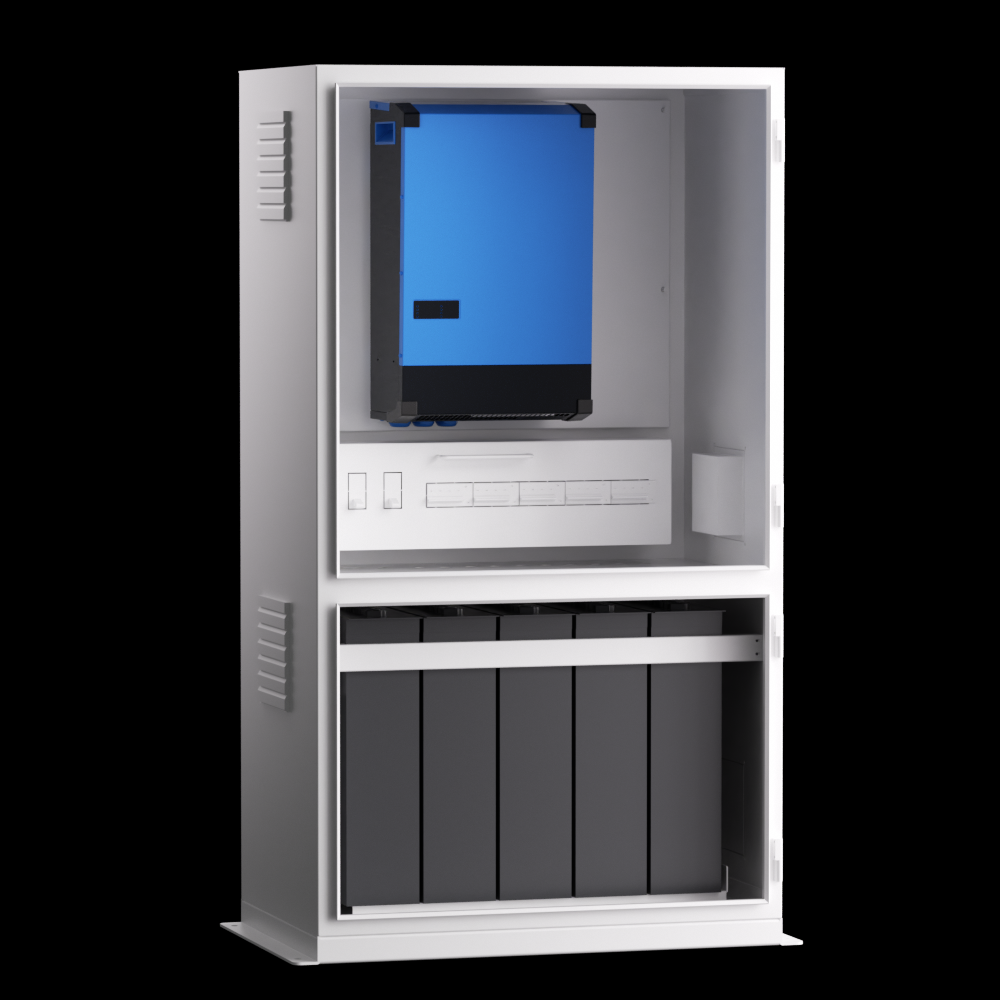

Save time on-site and provide the customer with a neat, safe enclosure for their solar system installation. The cabinets are sized to enable mounting of all inverters and charge controllers in the same panel. This makes the installation much safer, whilst keeping all equipment out of sight and protected from the elements. The cabinets are made of aluminium, making them easy to position and providing a long service life.
Smaller Wescor cabinets are available in the AC version as special orders only.Â
Wescor Battery and Equipment Enclosures​
Battery & Equipment Compatibility
Wescor aluminium battery and equipment enclosures are designed to accommodate a wide range of batteries, inverters and associated power equipment, including equipment from Victron Energy, Selectronic, Deye, ZYC Energy, BYD and other leading energy storage brands. Refer to the compatibility charts below for cabinet selection, equipment dimensions and quantities.                                                                                                             Â
Wescor enclosures are available in Standard and Deep configurations, with options including:Â
- Air-Conditioned cabinet
- Double Skin Air-Conditioned cabinet
- Double Skin cabinet

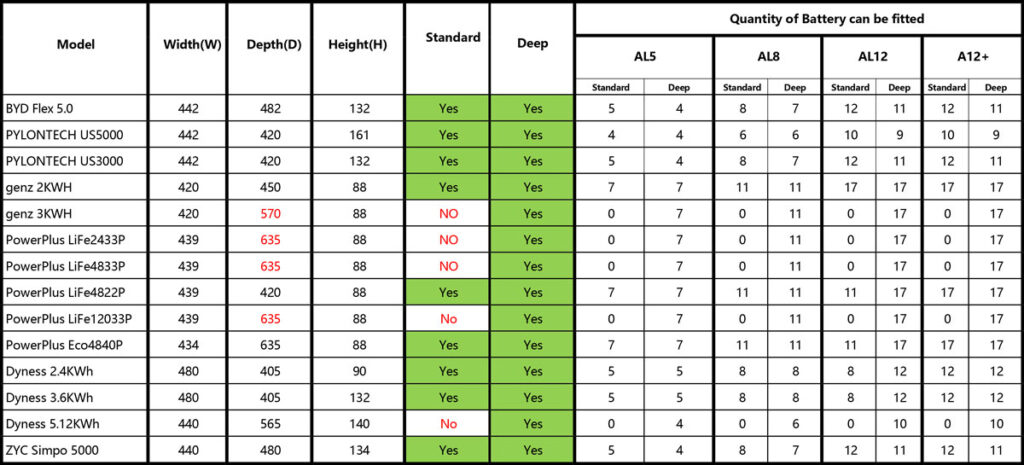

Battery Charts

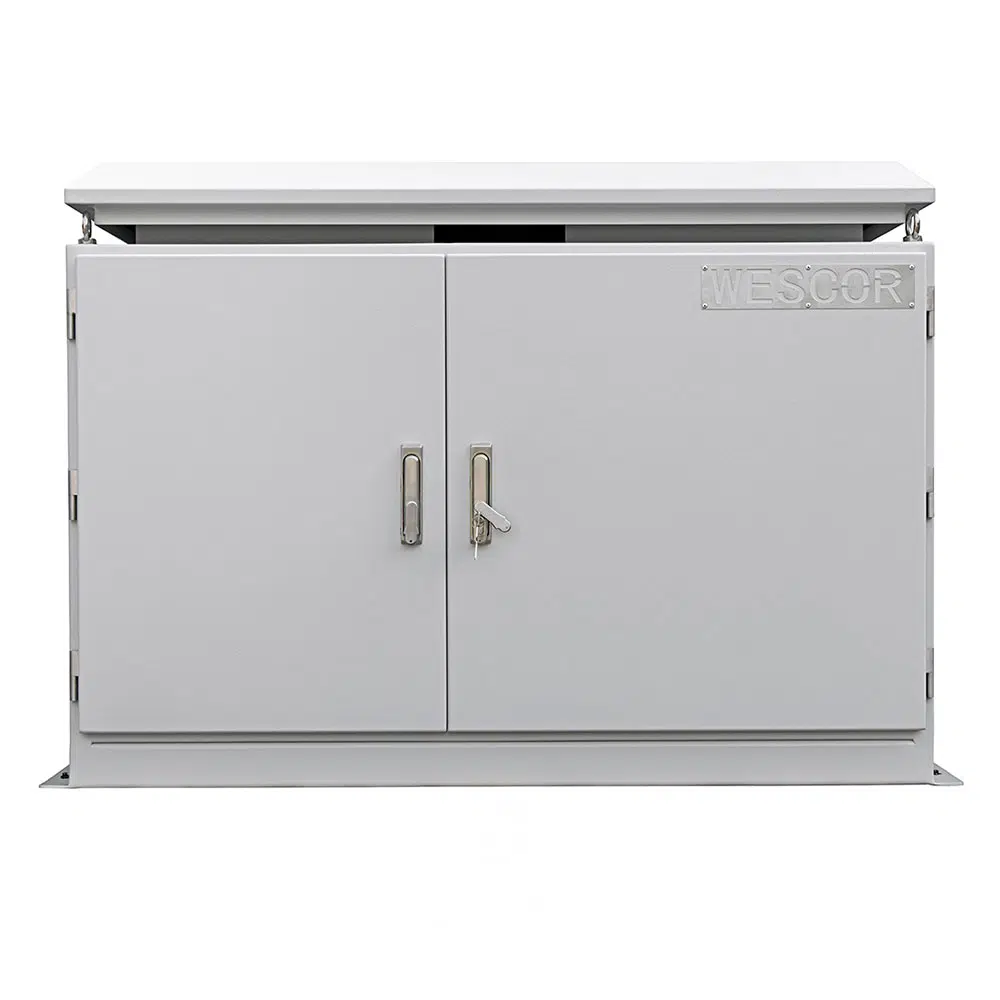

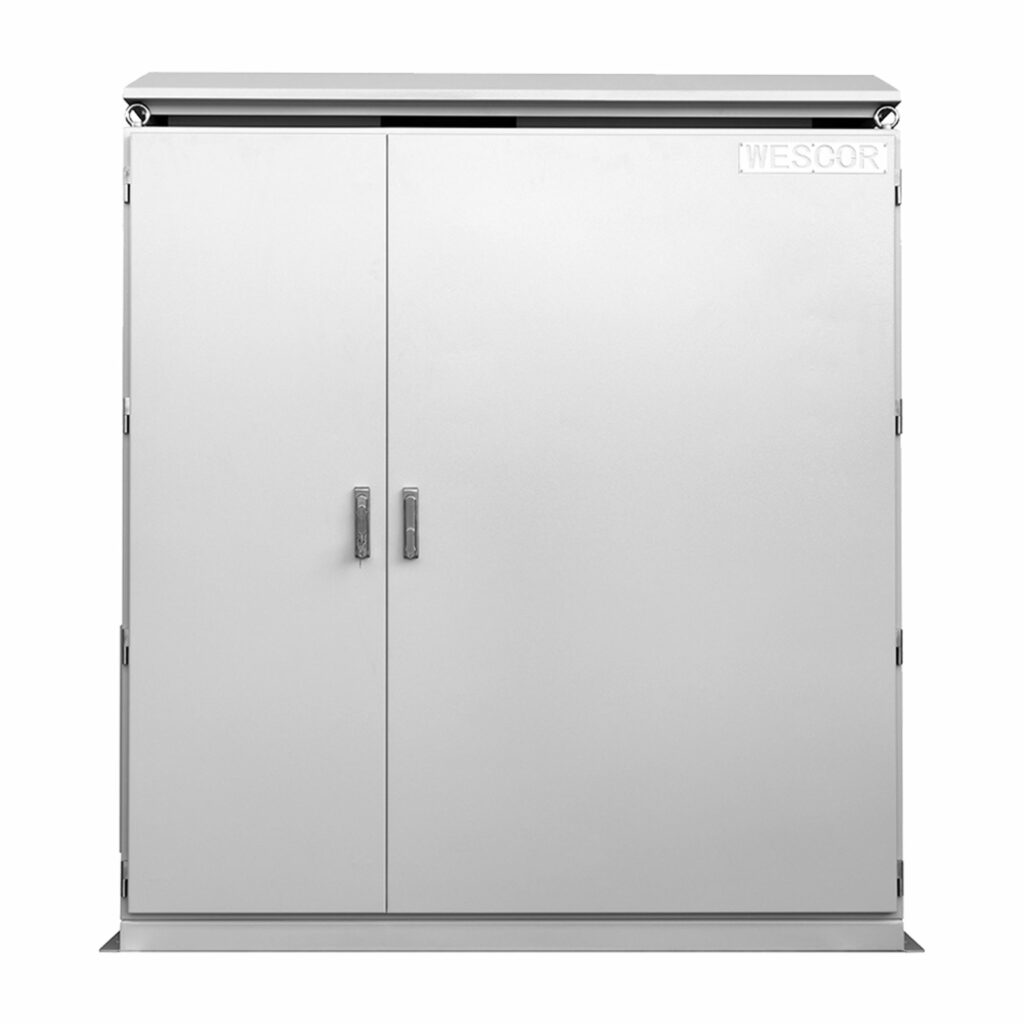

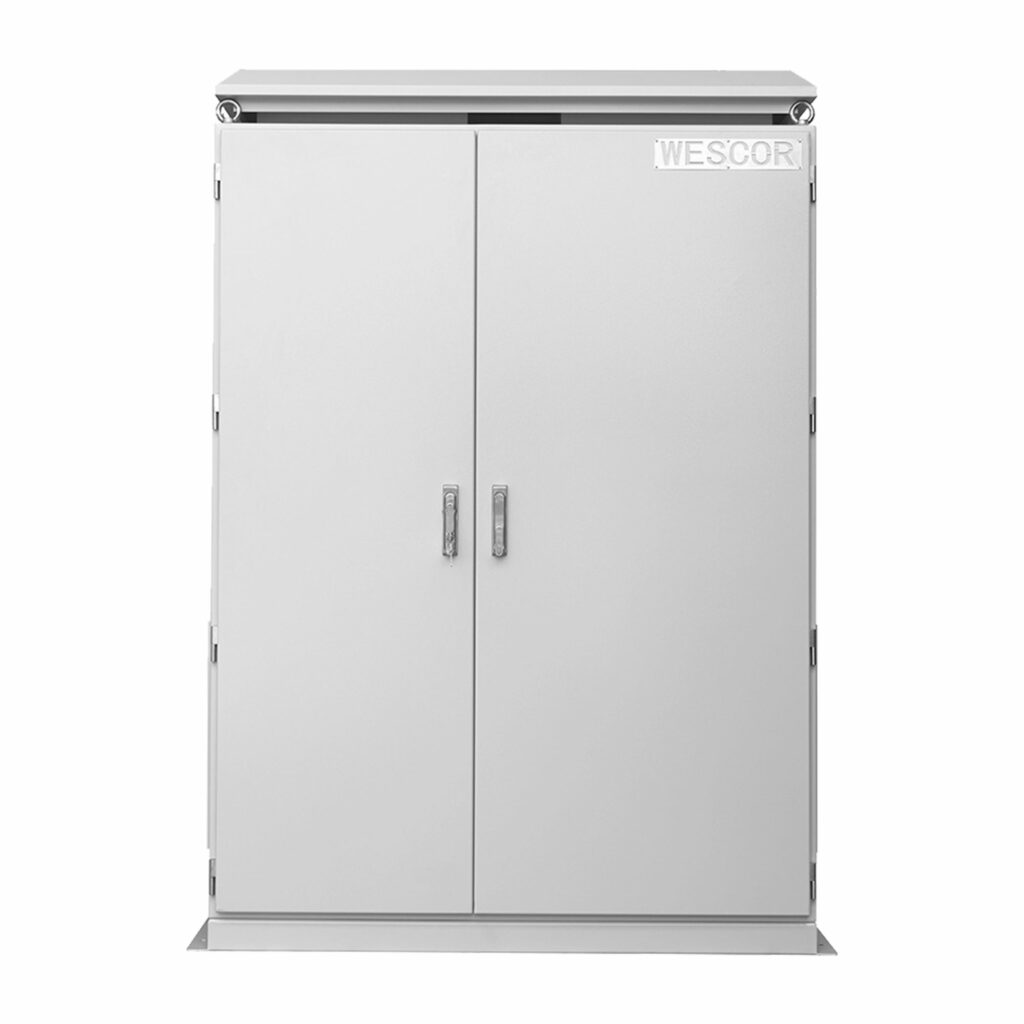

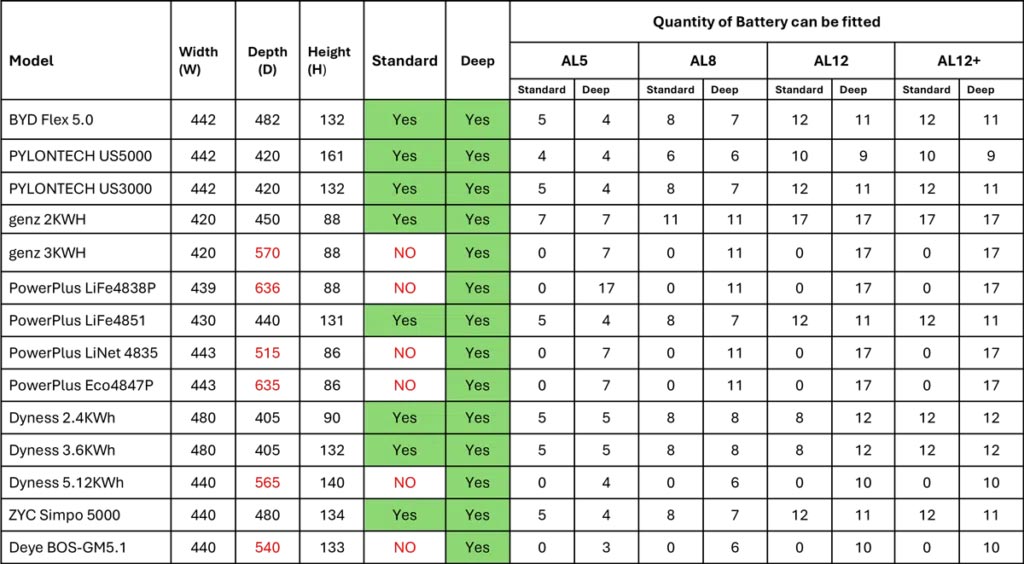

AL5-AL12+ Standard and Deep Range

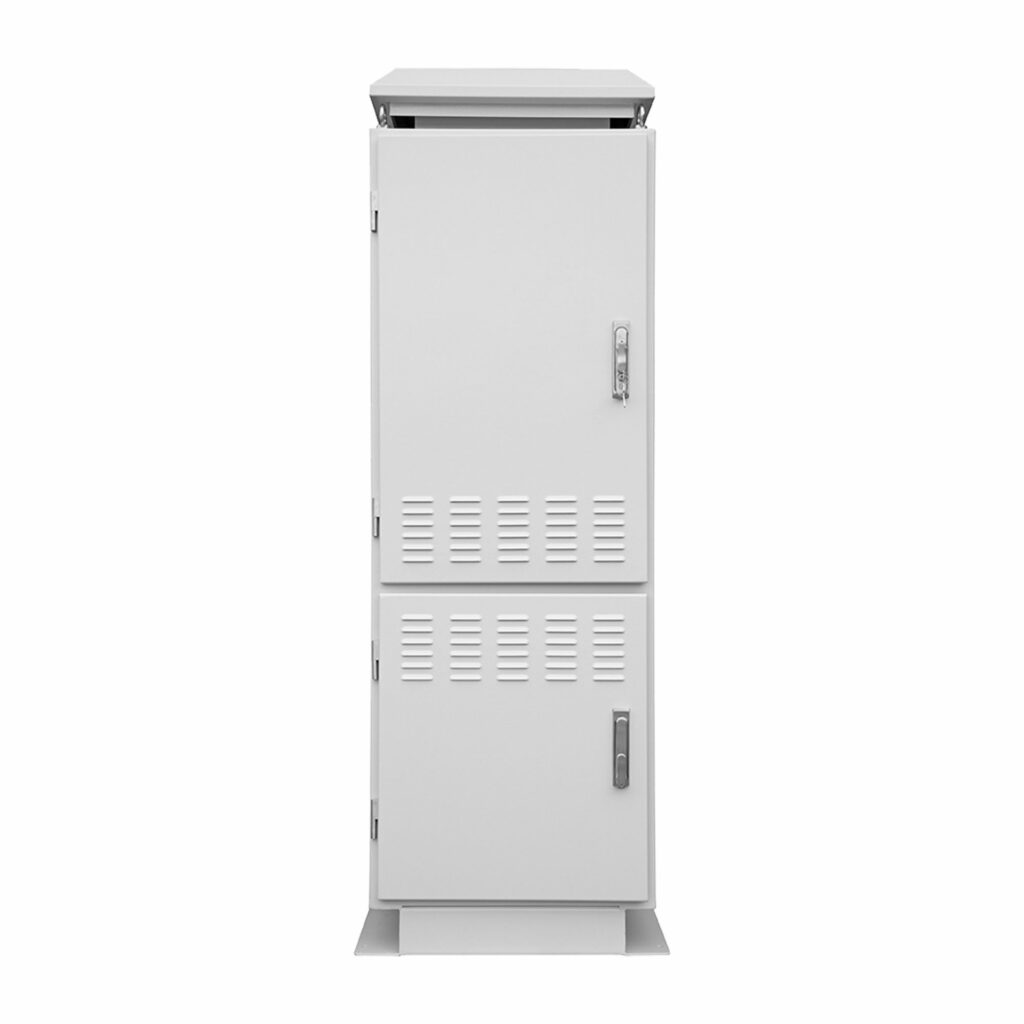

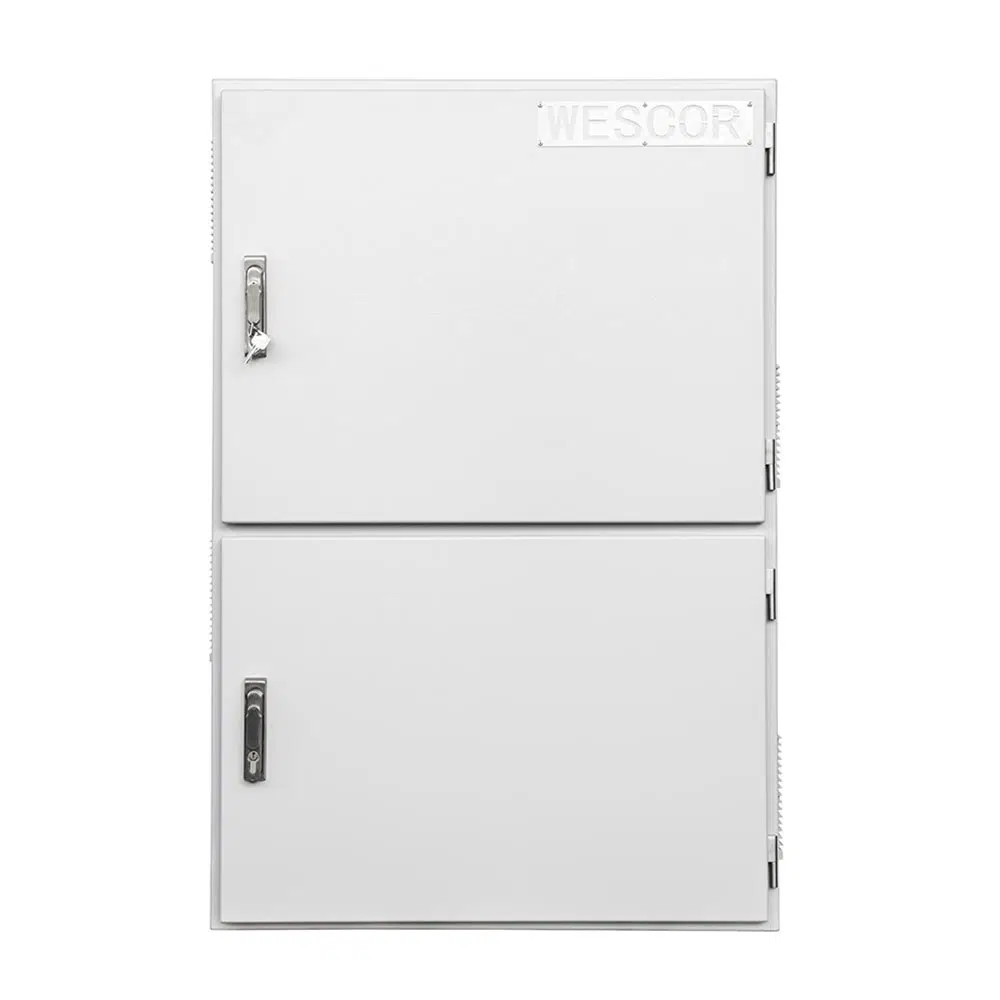

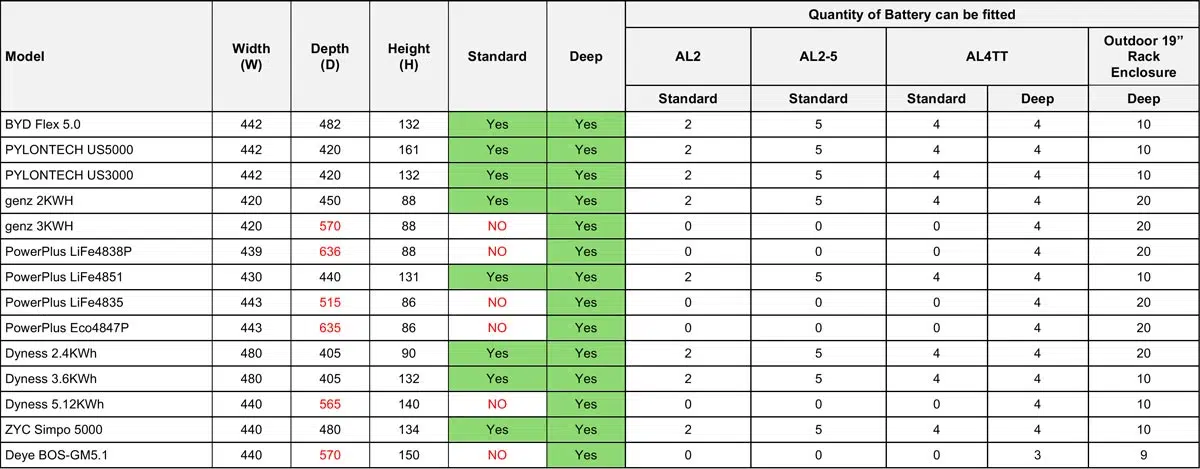

AL2, AL2-5 & AL4TT Standard and Deep Range

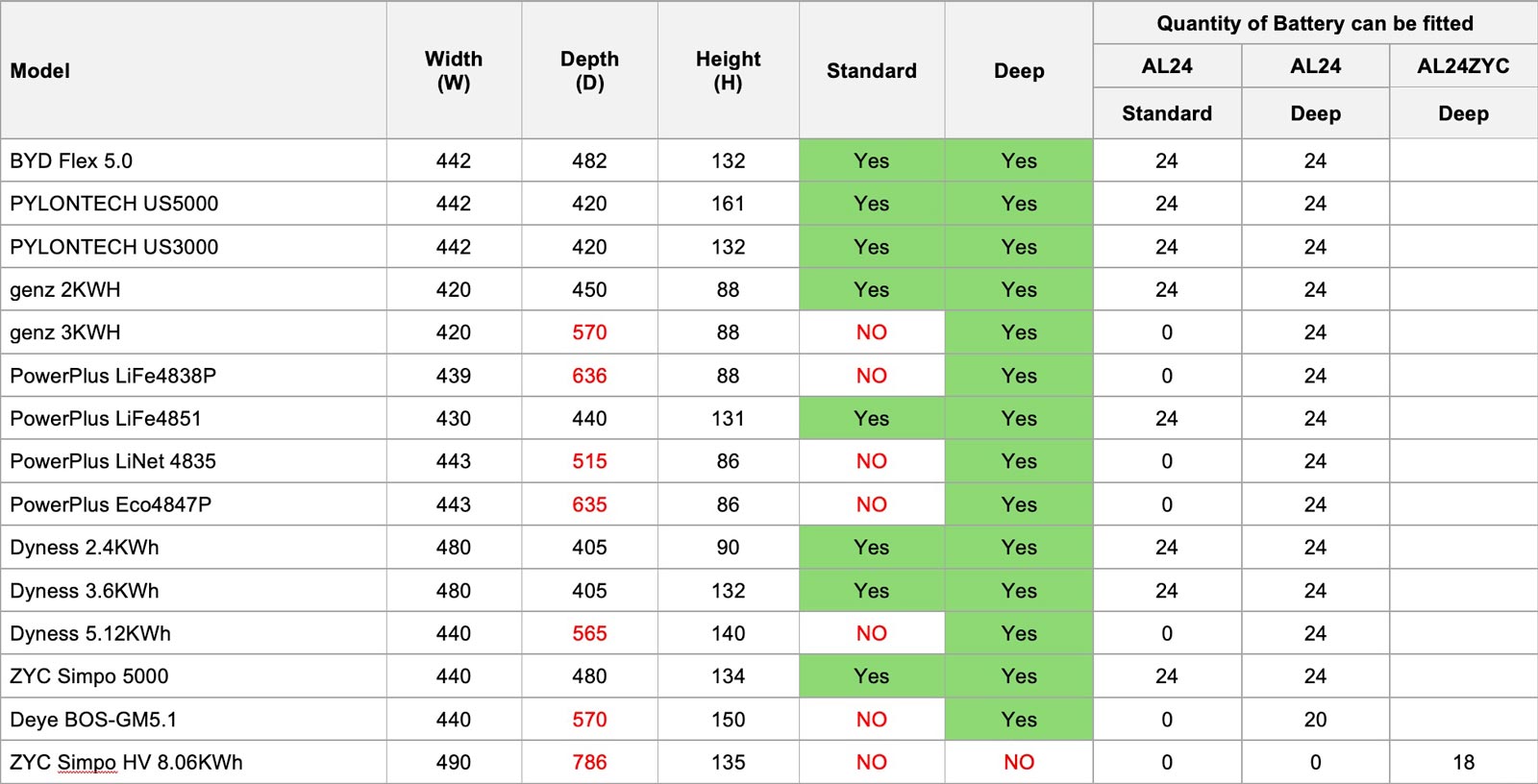

AL24 Standard and Deep Range

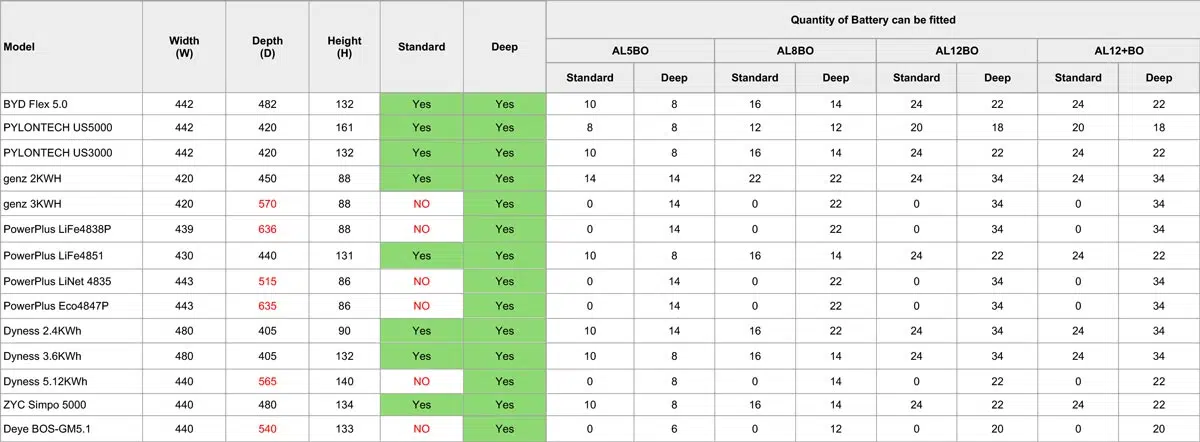

Batteries Only Cabinet Standard and Deep
Slimline Range
Price range: $3,216.36 through $3,377.27 Excl GST
Price range: $3,216.36 through $3,377.27 Excl GST
External height with cover: 2185mm
External cabinet width: 1545mm
External depth: 300mm
Battery Modules: 8
Price range: $3,701.82 through $3,890.91 Excl GST
Price range: $3,701.82 through $3,890.91 Excl GST
External height with cover: 2185mm
External cabinet width: 1786mm
External depth: 300mm
Battery Modules: 4
Standard Enclosures
$2,919.00 Excl GST
$2,919.00 Excl GST
External height with cover: 1680mm
External cabinet width: 900mm
External depth: 630mm
Battery Modules: 5
$1,800.73 Excl GST
$1,800.73 Excl GST
External height with cover: 1350mm
External cabinet width: 900mm
External depth: 400mm
Battery Modules: 2
$2,598.73 Excl GST
$2,598.73 Excl GST
External height with cover: 1862mm
External cabinet width: 600mm
External depth: 600mm
Battery Modules: 4
$3,270.73 Excl GST
$3,270.73 Excl GST
External height with cover: 1020mm
External cabinet width: 1400mm
External depth: 585mm
Battery Modules: 1-7 (refer to battery chart)
$3,837.73 Excl GST
$3,837.73 Excl GST
External height with cover: 1438mm
External cabinet width: 1400mm
External depth: 585mm
Battery Modules: 1-11 (Refer to battery chart)
$4,352.23 Excl GST
$4,352.23 Excl GST
External height with cover: 2038mm
External cabinet width: 1400mm
External depth: 585mm
Battery Modules: 1-17 (refer to battery chart)
$4,798.50 Excl GST
$4,798.50 Excl GST
External height with cover: 2038mm
External cabinet width: 1800mm
External depth: 585mm
Battery Modules: 1-17 (refer to battery chart)
$7,007.27 Excl GST
$7,007.27 Excl GST
External height with cover: 2150mm
External cabinet width: 2410mm
External depth: 585mm
Battery Modules: 1-24(refer to battery chart)

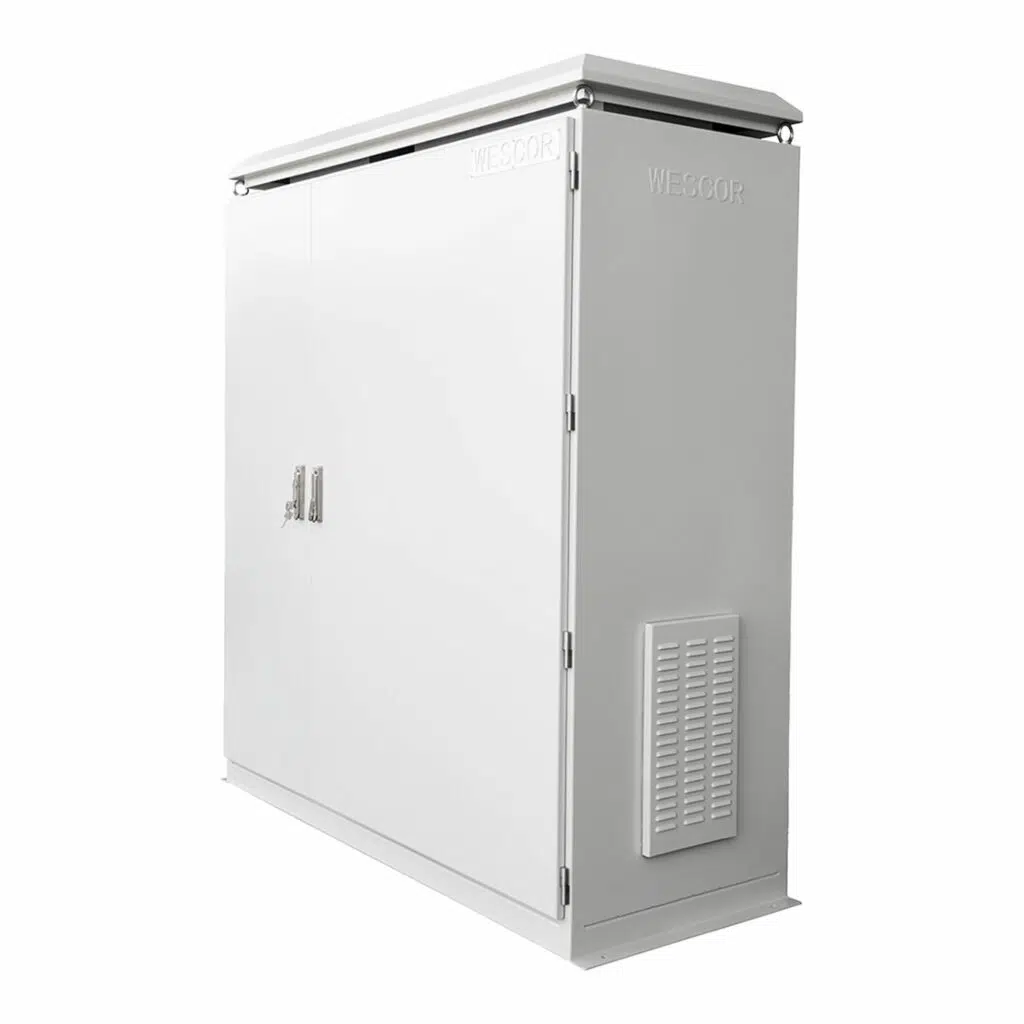

Deeper Enclosures
$3,165.73 Excl GST
$3,165.73 Excl GST
External height with cover: 1862mm
External cabinet width: 600mm
External depth: 810mm
Battery Modules: 5
$3,505.00 Excl GST
$3,505.00 Excl GST
External height with cover: 2275mm
External cabinet width: 746mm
External depth: 740mm
Battery Modules: 20
$3,486.00 Excl GST
$3,486.00 Excl GST
External height with cover: 1020mm
External cabinet width: 1400mm
External depth: 735mm
Battery Modules: 1-7 (Refer to battery chart)
$4,194.73 Excl GST
$4,194.73 Excl GST
External height with cover: 1438mm
External cabinet width: 1400mm
External depth: 735mm
Battery Modules: 1-11 (Refer to battery chart)
$4,850.91 Excl GST
$4,850.91 Excl GST
External height with cover: 2038mm
External cabinet width: 1400mm
External depth: 735mm
Battery Modules: 1-17 (Refer to battery chart)
$5,302.50 Excl GST
$5,302.50 Excl GST
External height with cover: 2038mm
External cabinet width: 1800mm
External depth: 735mm
Battery Modules: 1-17 (refer to battery chart)
$8,424.55 Excl GST
$8,424.55 Excl GST
External height with cover: 2150mm
External cabinet width: 2410mm
External depth: 735mm
Battery Modules: 1-24(refer to battery chart)
$8,845.45 Excl GST
$8,845.45 Excl GST
External height with cover: 2150mm
External cabinet width: 2410mm
External depth: 886mm
Battery Modules: 1-20(refer to battery chart)
Battery only Enclosures
$3,710.00 Excl GST
$3,710.00 Excl GST
External height with cover: 1020mm
External cabinet width: 1400mm
External depth: 735mm
Battery Modules: 1-14
$3,570.00 Excl GST
$3,570.00 Excl GST
External height with cover: 1020mm
External cabinet width: 1400mm
External depth: 585mm
Battery Modules: 1-10
$4,400.00 Excl GST
$4,400.00 Excl GST
External height with cover: 1438mm
External cabinet width: 1400mm
External depth: 735mm
Battery Modules: 1-22
$4,230.00 Excl GST
$4,230.00 Excl GST
External height with cover: 1438mm
External cabinet width: 1400mm
External depth: 585mm
Battery Modules: 1-16
$5,090.00 Excl GST
$5,090.00 Excl GST
External height with cover: 2038mm
External cabinet width: 1400mm
External depth: 735mm
Battery Modules: 1-34
$4,880.00 Excl GST
$4,880.00 Excl GST
External height with cover: 2038mm
External cabinet width: 1400mm
External depth: 585mm
Battery Modules: 1-24
$5,520.00 Excl GST
$5,520.00 Excl GST
External height with cover: 2038mm
External cabinet width: 1800mm
External depth: 735mm
Battery Modules: 1-34
$5,290.00 Excl GST
$5,290.00 Excl GST
External height with cover: 2038mm
External cabinet width: 1800mm
External depth: 585mm
Battery Modules: 1-24
Equipment only Enclosures
$3,380.91 Excl GST
$3,380.91 Excl GST
External height with cover: 1438mm
External cabinet width: 1400mm
External depth: 585mm
$3,958.18 Excl GST
$3,958.18 Excl GST
External height with cover: 2038mm
External cabinet width: 1400mm
External depth: 585mm
$4,283.64 Excl GST
$4,283.64 Excl GST
External height with cover: 2038mm
External cabinet width: 1800mm
External depth: 585mm
On Grid Hybrid completed cabinet
Price range: $12,446.91 through $22,322.18 Excl GST
Price range: $12,446.91 through $22,322.18 Excl GST
*Price after battery booster rebate deducted

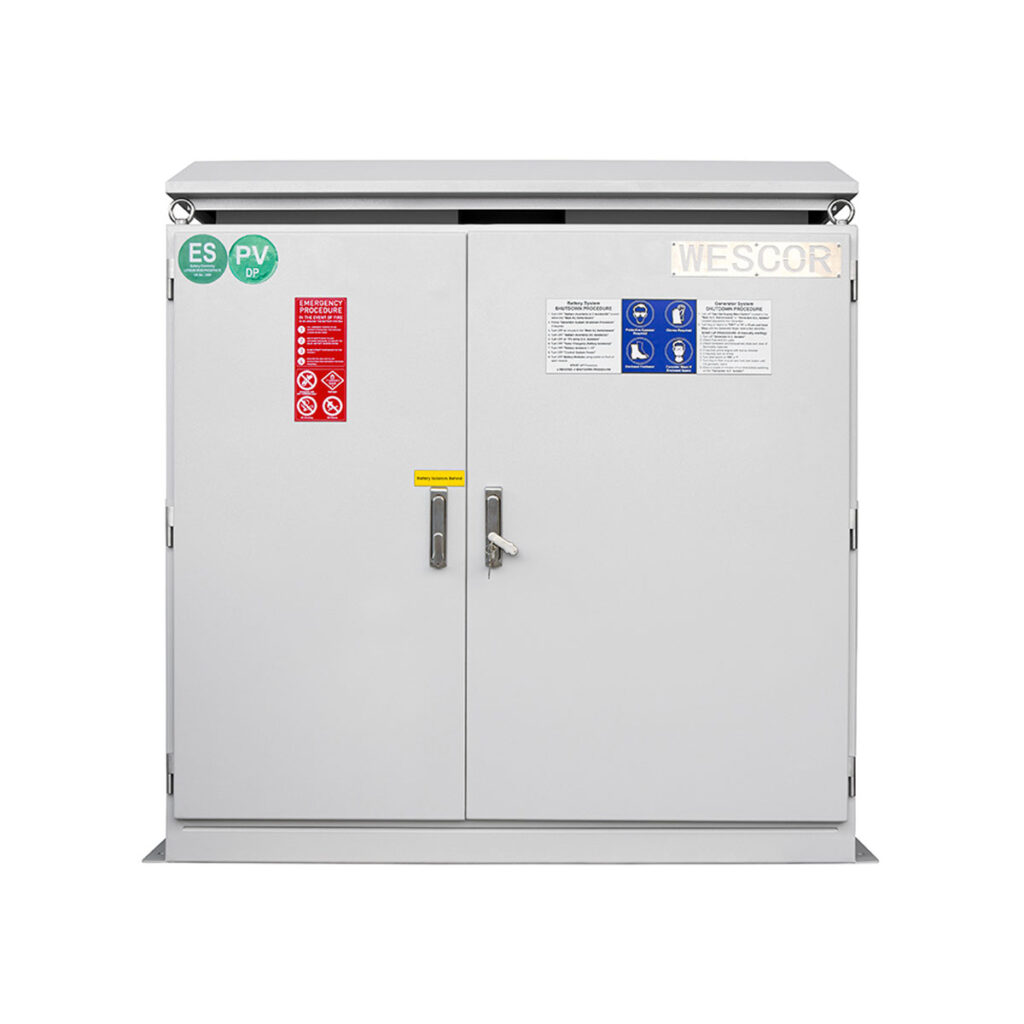

CABINET: AL8
External height with cover: 1438mm
External cabinet width: 1400mm
External depth: 585mm
Battery Modules: 2-8

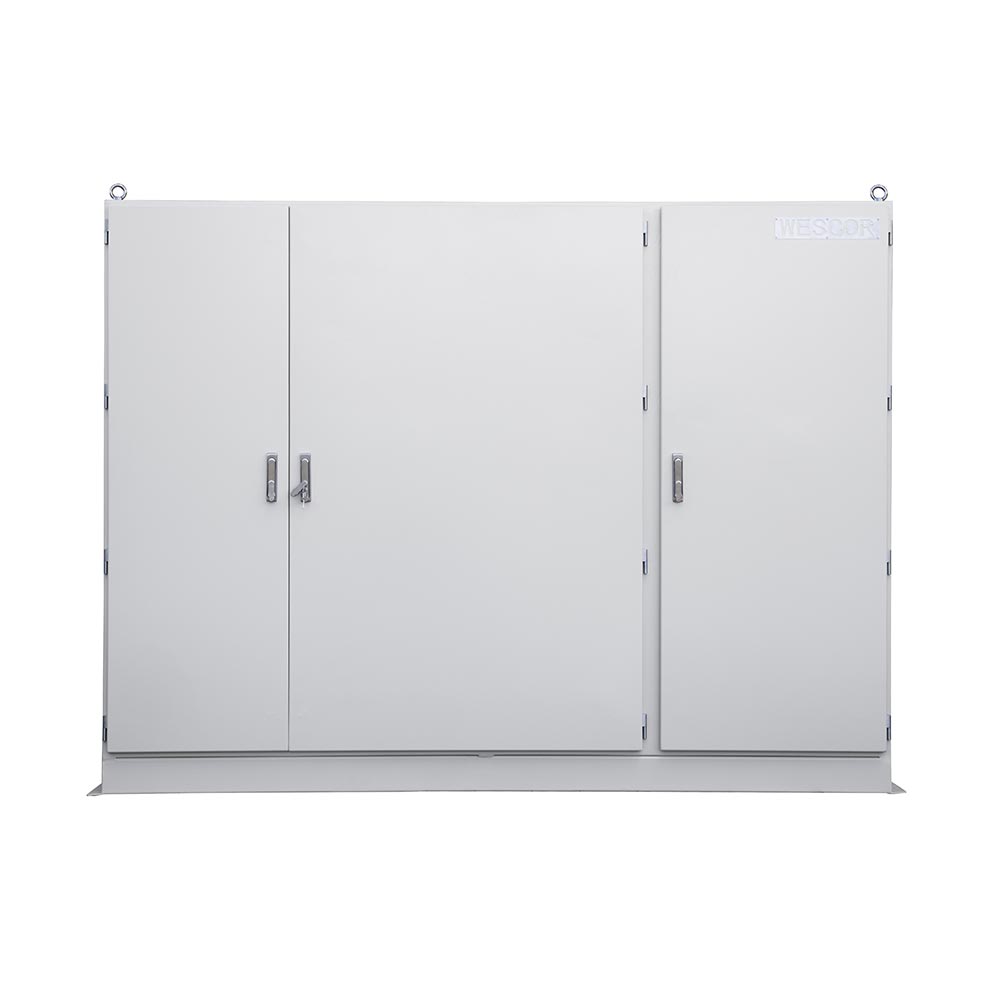

Standard Enclosures with Air Conditioning
$6,368.27 Excl GST
$6,368.27 Excl GST
External height to top of cabinet: 1945mm
External cabinet width: 2200mm
External depth: 760mm
Battery Modules: 1-17 (Refer to battery chart)
$6,726.00 Excl GST
$6,726.00 Excl GST
External height to top of cabinet: 1945mm
External cabinet width: 2600mm
External depth: 760mm
Battery Modules: 1-17 (Refer to battery chart)
* Price excludes air-con unit.

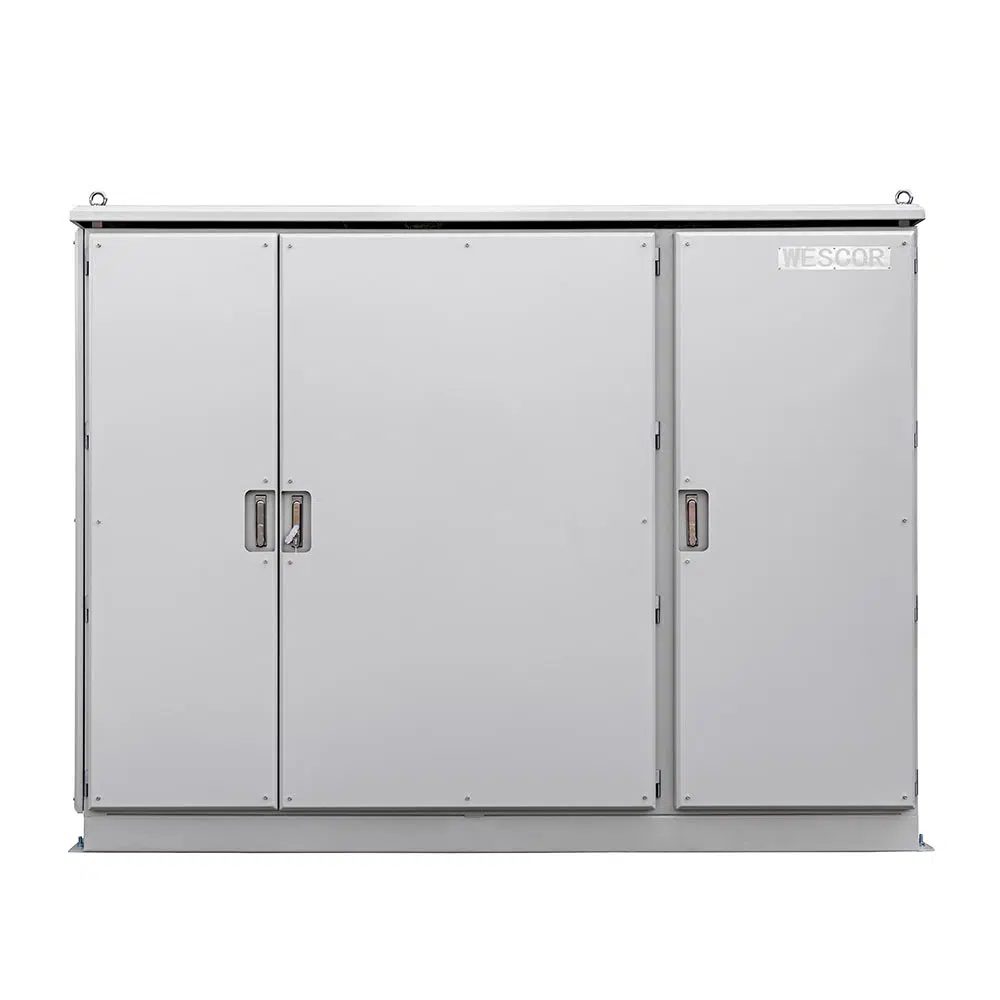

Standard Enclosures with Air Conditioning Double Skinning
$8,724.45 Excl GST
$8,724.45 Excl GST
External height to top of cabinet: 1945mm
External cabinet width: 2600mm
External depth: 760mm
Battery Modules: 12
* Price excludes air-con unit.
$7,234.50 Excl GST
$7,234.50 Excl GST
External height to top of cabinet: 1945mm
External cabinet width: 2200mm
External depth: 760mm
Battery Modules: 12
Parts
